Description

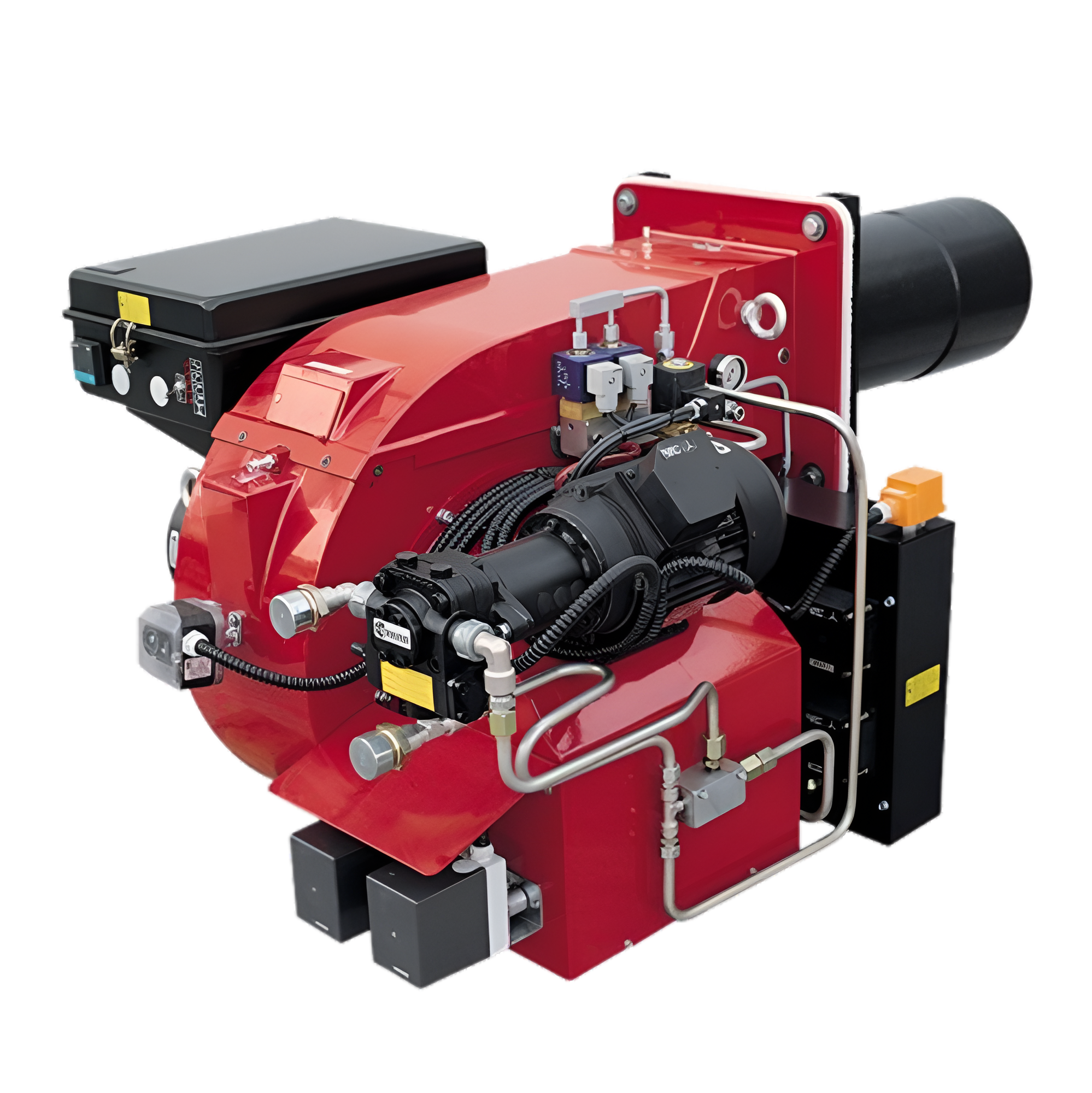

Modulating heavy oil burners are designed for industrial applications that require precise control of heat output, ensuring efficiency, cost savings, and consistent performance. These burners allow for continuous adjustment of the flame intensity based on the heating demand, optimizing fuel consumption and reducing emissions. Ideal for handling viscous heavy oil fuels such as furnace oil or residual oil, modulating heavy oil burners provide flexibility by operating at variable firing rates, making them highly efficient for large-scale heating systems and high-temperature processes.

These burners are engineered to ensure reliable, clean combustion, even with challenging heavy oils, and are built to last in demanding industrial environments.

Key Features

• Modulating Operation: Continuous modulation allows for precise control of heat output, matching the exact needs of the process, leading to higher efficiency.
• Fuel Flexibility: Can handle high-viscosity heavy oils, including furnace oil, residual oil, and other industrial-grade fuels.
• High Efficiency: Optimized air-fuel mixing reduces fuel consumption and ensures complete combustion, achieving up to 95% combustion efficiency.
• Low Emissions: Equipped with advanced combustion technology to minimize NOx and CO emissions, even when burning heavy fuels.
• Durable Construction: Made with corrosion-resistant materials and components to withstand harsh industrial environments.
• Advanced Control Systems: Features a digital modulating control panel for real-time adjustments, flame monitoring, and safety controls.
• Energy Saving: Modulation reduces fuel wastage during low load operations, extending the life of the burner and reducing energy costs.

Applications

Modulating heavy oil burners are versatile and are widely used across various industries that require efficient, high-temperature heating, such as:

• Industrial Boilers: Ideal for providing steady and controlled heat in industrial boilers used in steam generation and heating processes.
• Power Plants: Used for generating heat in boilers for power generation through steam turbines.
• Cement and Lime Kilns: Provides the necessary heat for large-scale industrial kilns used in cement and lime production.
• Metal and Steel Manufacturing: Suitable for furnaces used in metal processing, heat treatment, and smelting operations.
• Chemical and Petrochemical Industries: Provides efficient heat for distillation, refining, and other chemical processes that require precise temperature control.
• Food Processing: Used in industrial food production plants requiring large-scale heating operations, such as drying or cooking.

Technical Specifications

• Fuel Type: Heavy oil (furnace oil, residual oil, bunker oil)
• Burner Capacity: 500 kW to 50,000 kW
• Modulation Range: 10:1 ratio for precise heat control
• Fuel Viscosity: Can handle fuels with viscosities up to 600 cSt
• Fuel Pressure: 15 - 35 bar
• Air Supply: Forced draft with automatic air-fuel ratio control for optimal combustion
• Combustion Efficiency: Up to 95% with precise modulation
• Emission Levels:
  • NOx: < 80 mg/m³
  • CO: < 50 mg/m³
• Operating Voltage: 220V - 380V / 50-60Hz (customizable)
• Ignition System: High-energy automatic electronic ignition
• Control System: Digital modulating controller with real-time flame monitoring, diagnostics, and automatic safety features such as fuel shutoff.
• Burner Material: High-grade, corrosion-resistant steel, designed for long-term durability in industrial settings.
• Temperature Range: Can handle high operational temperatures of up to 1,500°C
• Noise Levels: < 70 dB during operation

Advantages

• Precision Heating: Continuous modulation allows for exact temperature control, ensuring consistent performance across varying load conditions.
• Fuel Savings: Modulating operation optimizes fuel usage, reducing overall consumption and cutting operational costs.
• Long Service Life: Built to withstand the harsh conditions of industrial applications, offering reliable performance for years.
• Environmentally Friendly: Low emissions help meet stringent environmental standards, reducing the overall carbon footprint.
• Minimal Downtime: Easy access to components for quick maintenance and repair, ensuring minimal disruption to operations.
